Algal cultivation cultivates algae in controlled or semi-controlled environments for several applications such as biofuel production, pharmaceuticals, cosmetics, food, feed, and wastewater treatment.
Algae are photosynthetic microorganisms ranging from microscopic microalgae to giant seaweeds or macroalgae. Their capability to quickly convert sunlight, carbon dioxide, and nutrients into biomass renders them a highly promising source of renewable resources. Algae contain high amounts of bioactive molecules including lipids, proteins, carbohydrates, pigments, and vitamins, which are applied in industries such as nutraceuticals and biotechnology.
Cultivating algal growth is most often performed in either open or closed systems. Open systems are simpler and cheaper to maintain but are less controlled and prone to contamination. Closed systems, in contrast, allow for greater control over growth conditions and yields, but are more costly to install and run.
Open System Algal Cultivation Methods
Open system cultivation is the conventional process of cultivating algae in outdoor settings utilizing natural sunlight and atmospheric carbon dioxide. Open systems are typically low-cost and simple to scale but are constrained by environmental fluctuations and susceptibility to contamination by other organisms. The most predominant forms of open system methods are open ponds, raceway ponds, high-rate algal ponds (HRAPs), and open sea cultivation.
Open ponds– Open ponds are natural or artificial shallow water bodies where algae are permitted to grow with little interference. They are usually 15 to 30 centimeters deep to permit adequate penetration of sunlight. They are easy to construct and maintain, and they are suitable for cultivating hardy organisms such as Spirulina. They are very vulnerable to environmental changes, contamination, evaporation, and non-uniform distribution of nutrients.

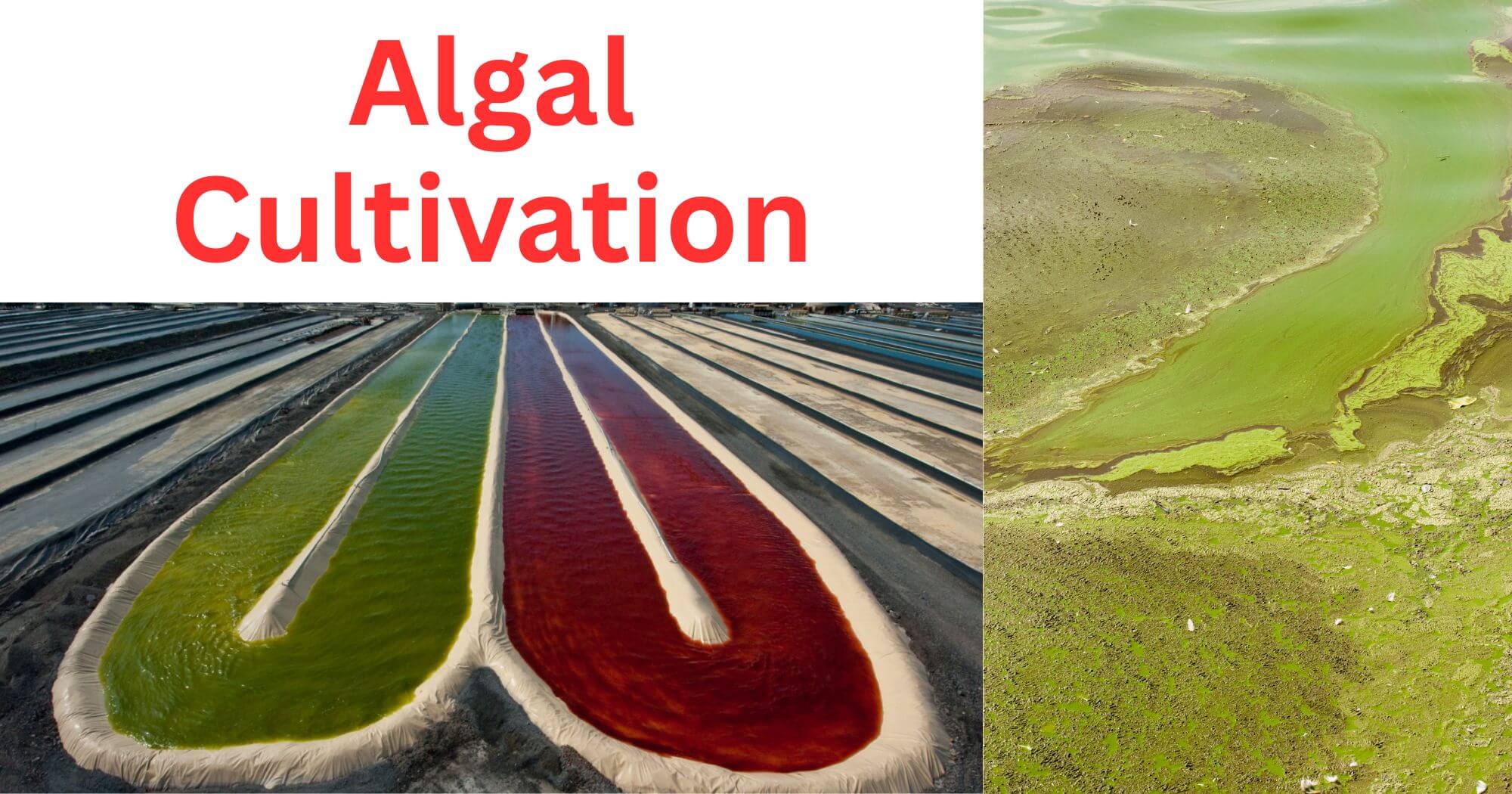

Raceway ponds– Raceway ponds are an extended version of open ponds, but in a closed-loop oval or serpentine configuration with a paddle wheel for constant culture mixing. Constant mixing enhances access to sunlight and nutrients and consequently increases algal productivity compared to static ponds. Raceway ponds are shallow, usually with concrete, fiberglass, or plastic linings to conserve water loss and contamination. Despite improved mixing and scalability, raceway ponds are still exposed to contaminants and uncontrolled environments.
High-rate algal ponds– High-rate algal ponds (HRAPs) are a specialized variant of raceway ponds designed to maximize quicker growth rates of algae and nutrient uptake. These systems have controlled flow patterns and can include CO₂ injection and wastewater recycling. HRAPs are applied not just for algal biomass production but also for environmental purposes like wastewater treatment. They are developed to increase the penetration of light, reduce dead zones, and promote photosynthetic efficiency. Though HRAPs provide improved productivity and dual benefits, they need careful management and remain susceptible to weather and environmental conditions.
Open sea farming– Open sea farming is mainly employed in cultivating macroalgae or seaweeds in natural marine ecosystems. Methods like long-line farming, raft culture, net culture, and bottom planting are used frequently. These techniques employ ropes, rafts, or nets floating in seawater where algae develop by picking up naturally accessible nutrients. Open-sea aquaculture is a low-cost and sustainable technique with no artificial inputs needed. It allows large-scale seaweed aquaculture for food (such as Nori and Wakame), hydrocolloids (such as agar and carrageenan), and cosmetics. Yet it is extremely reliant on seasonal and oceanic conditions and could be impacted by marine pollution, storms, and biological threats such as grazing or disease.
Closed System Algal Cultivation Techniques
Closed system cultivation of algae refers to the cultivation of microalgae in closed environments, including photo-bioreactors, where outside conditions can be controlled with precision. In comparison to open systems, closed systems reduce contamination dangers, enhance production, and permit the growth of particular algal strains under set environmental factors such as temperature, light, and nutrient availability.
Photobioreactors (PBRs)- These are the most prevalent closed systems for algal culture. They are transparent, specially designed-vessels that allow maximum algal growth by enabling light penetration and controlled mixing. They can be made of glass or transparent plastics and are applied in research and industry. Photo bioreactors are especially useful for the production of high-value algal products such as pharmaceuticals, cosmetics, and nutritional supplements because they can sustain axenic (pure) cultures. There are three types which are as follows-
Flat Panel Photo-bioreactors– These are constructed with flat, inclined, or vertical panels that support a high surface-area-to-volume ratio, which facilitates uniform light distribution and gas exchange. Their compact nature makes them ideal for indoor production and urban areas. Nevertheless, limitations such as biofilm development on the panels may hamper the penetration of light over time.
Tubular Photo-bioreactors- These are made of transparent, long tubes in different arrangements like helical, serpentine coils, or horizontal loops. Algae are pumped through these tubes, which exposes them to CO₂ and light continually. These systems offer high biomass productivity and are commercially mass-produced. These systems are, however, susceptible to overheating and oxygenation, and hence, need active cooling and degassing units.
Plastic Bag Photo-bioreactors- These are simple and low-cost methods where algae are cultivated in large, clear plastic bags, either hanging vertically or lying flat. They are best used for small-scale or experimental cultivation. Although easy to install and get rid of, they are not as long-lasting and more prone to mechanical stresses and limited scalability.
Porous Substrate Bioreactors– These are made up of half-solid or solid substrates like foams, meshes, or films upon which algae can settle and form biofilms. These types of systems are beneficial in terms of water conservation and efficient biomass harvesting without the need for centrifugation or flocculation. They are particularly beneficial in arid areas or configurations with low water supply, although they are better for particular algal species that grow well in attached growth modes.
Monoculture and Mixed Culture Strategies– Monoculture and mixed culture both can be used to cultivate algae.
Monocultures- Monoculture is the practice of cultivating one algal species under a controlled environment. Monoculture is the best technique for yielding homogeneous biomass and desired compounds and thus finds applications in industries like biofuel production or pharmaceuticals. Monocultures are extremely prone to contamination and need to be maintained under strict environmental control.
Mixed cultures– Mixed cultures, on the other hand, involve the co-cultivation of more than one algal species, normally simulating natural communities. Mixed cultures are less vulnerable to environmental stresses and contamination and can produce more diverse ranges of bioactive compounds. Although they are sustainable in open systems, the consistency of the product is an issue.
Factors influencing Algal Growth
Several environmental and operational conditions affect the growth, productivity, and biochemical makeup of algae. Factors affecting algal growth are as follows-
Temperature– Algae have species-specific temperature optima, and they usually function between 20°C and 30°C. Variations from the optimum may retard metabolic functions or cause cell death. In closed systems, the temperature is maintained by heaters, coolers, or insulators, whereas in open ponds it relies mainly on environmental conditions.
Light exposure and mixing– Light is the major source of energy for photosynthesis. Proper light intensity, duration, and spectral quality are necessary to achieve maximum growth. Continuous agitation facilitates even light distribution, cell suspension, and improved nutrient and gas exchange. Artificial lighting and mechanical agitation are commonly used by photo-bioreactors to optimize these conditions.
Nutrient availability- Algal development is a function of the concentration of critical nutrients like nitrogen, phosphorus, iron, and trace minerals. Nutrient deficiencies can restrict the yield of biomass, while in excess; it can encourage the growth of undesirable populations. Fertilizers, effluent, and agricultural runoff are typical sources of nutrients.
Oxygen levels – Heavy photosynthetic activity results in oxygen buildup, which can be inhibitory if not properly controlled, especially in closed systems. Degassing units or mixing tactics are used to off-gas excess oxygen.
Odor management– Anaerobic conditions in stagnant cultures can also produce foul odors, which is a sign of poor system health.
Harvesting Techniques of Algae
Harvesting of algal biomass is an important process that is performed by the following methods-
Flocculation methods– Flocculation is a process of combining algal cells into large clumps by using chemical or biological flocculants. They settle quicker and are simpler to separate. Even though effective, chemical flocculants can pollute the biomass if the wrong choice is made.
Centrifugation– Centrifugation utilizes rapid spinning at high speeds to quickly separate algal cells by density. It is very efficient and appropriate for high-value products but energy-intensive and expensive for mass production.
Froth flotation– Froth flotation involves the use of air bubbles to float algal cells to the surface where they can be skimmed. Froth flotation works well with some buoyant species and is usually used with chemical aids to enhance efficiency.
Auto-flocculation- Auto-flocculation occurs naturally under specific pH or ionic conditions, causing algal cells to clump without external agents. This environmentally friendly method is cost-effective but not universally applicable to all algal strains.
Applications of Algal Cultivation
Cultivated algae provide an extensive range of uses in industrial, environmental, agricultural, and biomedical fields and are thus one of the most valuable and versatile biological resources.
Algae provide a sustainable option for fossil fuels as a biofuel source because of their high growth rate and lipids, which can be used to produce biodiesel, bioethanol, biogas, and even biohydrogen. Compared to land-based crops for biofuels, algae do not compete with food crops for fertile land or freshwater.
Microalgae like Chlorella and Spirulina are used in the nutraceutical and pharmaceutical industries and contain proteins, essential fatty acids (e.g., omega-3), vitamins, antioxidants, and pigments like astaxanthin, which possess health-promoting and therapeutic activities. These substances are utilized in dietary supplements, functional foods, and as anti-inflammatory and immune-stimulating agents.
Algae are also commonly used in the cosmetics industry for their rejuvenation effect on the skin. Algal extracts are used in moisturizers, sunscreens, anti-aging creams, and hair care products because of their antioxidant activity and hydration capacity.
In agriculture, algae function as bio-fertilizers and bio-stimulants to improve soil fertility as well as crop yields, whereas in aquaculture, algae are consumed as the main source of nutrients by larval forms of fish, mollusks, and crustaceans, supplying the desired nutrients as well as increasing survival rates. In wastewater treatment, some algal species in bioremediation treat industrial and municipal effluents to eliminate pollutants, heavy metals, nitrates, and phosphates, promoting the sustainability of the environment.
Additionally, algae contribute enormously to carbon dioxide sequestration, which assists in offsetting greenhouse gas emissions by trapping CO₂ in photosynthesis.
Generally, the versatile applications of algae justify their importance in promoting green technology and sustainable growth.
Emerging trends in Algal Cultivation technologies
The future of algal culture is based on enhancing sustainability, efficiency, and scalability to accommodate growing global demands in food, energy, and environmental applications. New trends emphasize the creation of advanced photo-bioreactor systems, which are becoming increasingly energy-efficient, modular, and able to provide optimal growth conditions like light, temperature, and carbon dioxide levels. There are also attempts to decrease energy input by optimizing mixing and aeration methods and integrating renewable sources of energy such as solar energy into algal farms.
There are also efforts to explore the genetic improvement of algal strains in order to enhance biomass yield and maximize the synthesis of useful compounds like proteins, lipids, pigments, and bioactive compounds. Also, co-cultivation systems where algae are cultivated together with symbiotic organisms such as fungi or bacteria are being explored to enhance growth rates and uptake naturally. Another trend is using wastewater and industrial effluent as a source of nutrients, which not only helps clean the environment but also reduces the cultivation cost.
Finally, sea and offshore production systems are emerging as popular choices due to their capacity to harvest natural water bodies, minimize land use, and take advantage of continuous nutrient supply and sunlight.
Conclusion
Algal culture has been identified as a viable option for producing food, fuel, drugs, and other commodities sustainably. Algae may be grown relatively with little environmental burden using both open and closed systems. Although algal culture faces several limitations like contamination, high costs of production, and requirements of controlled environments, constant research in cultivation systems and strain improvement is slowly addressing these limitations.
The marriage of green practices, the use of waste material, and the process optimization of growth methods portend a rosy future for this industry. As technology keeps evolving, the cultivation of algae will be a key strategy for the solving of global environmental and resource-related issues.
References
- 9.5 Algae Harvesting and Separation Technologies | EGEE 439: Alternative Fuels from Biomass Sources. (n.d.). https://www.e-education.psu.edu/egee439/node/696
- Algal Biomass Production – Oklahoma State University. (2015, March 1). https://extension.okstate.edu/fact-sheets/algal-biomass-production.html
- Islam, M. S., Saha, B. B., Rahman, M. M., & Fayyaz, R. (2025). Commercial and industrial algae culture and applications. In IntechOpen eBooks. https://doi.org/10.5772/intechopen.1008949
- Keith, J. (2025, April 4). Microalgae cultivation. Ocean Visions. https://oceanvisions.org/microalgae-cultivation/
- Lane, T. W. (2021). Barriers to microalgal mass cultivation. Current Opinion in Biotechnology, 73, 323–328. https://doi.org/10.1016/j.copbio.2021.09.013
- Liang, Y., Kashdan, T., Sterner, C., Dombrowski, L., Petrick, I., Kröger, M., & Höfer, R. (2015). Algal biorefineries. In Elsevier eBooks (pp. 35–90). https://doi.org/10.1016/b978-0-444-63453-5.00002-1
- Matter, I. A., Bui, V. K. H., Jung, M., Seo, J. Y., Kim, Y., Lee, Y., & Oh, Y. (2020, September 13). Flocculation harvesting techniques for microalgae. https://encyclopedia.pub/entry/2007
- Rozenberg, J. M., Sorokin, B. A., Mukhambetova, A. N., Emelianova, A. A., Kuzmin, V. V., Belogurova‐Ovchinnikova, O. Y., & Kuzmin, D. V. (2024). Recent advances and fundamentals of microalgae cultivation technology. Biotechnology Journal, 19(3). https://doi.org/10.1002/biot.202300725
- Sun, W., & Zhang, Y. (2023). Review of Advances in Microalgae Cultivation Technology. Deleted Journal, 3(1), 51–53. https://doi.org/10.54097/jid.v3i1.8419
- Tan, J. S., Lee, S. Y., Chew, K. W., Lam, M. K., Lim, J. W., Ho, S., & Show, P. L. (2020). A review on microalgae cultivation and harvesting, and their biomass extraction processing using ionic liquids. Bioengineered, 11(1), 116–129. https://doi.org/10.1080/21655979.2020.1711626
- Zohir, W. F., Makhlof, M. E. M., Abdallah, A. M., & El-Sheekh, M. M. (2023). Algae cultivation systems. In Springer eBooks (pp. 11–41). https://doi.org/10.1007/978-3-031-42026-9_2
