HPLC: Principle, Instrumentation, Types, Uses, Diagram

High-performance liquid chromatography (HPLC) is a liquid chromatography method that is used to separate and analyze components in liquid mixtures.

It is a modified form of column chromatography that uses high pressure to pump a liquid phase through a column packed with stationary-phase particles of very small size.

• In early column chromatography methods, solvents moved through large stationary-phase particles by gravity, which was slow and inefficient.
• Separation efficiency and speed can be improved by using smaller particles. Small particle size provides a large surface area, but it also increases resistance to flow, which is not practical for gravity-based methods.
• To overcome this, high-pressure pumps were introduced, which led to the development of high-pressure liquid chromatography.
• This method was later referred to as high-performance liquid chromatography due to improvements in column materials and pumps.
• The concept of using high pressure and small particles to improve chromatography was already predicted in 1941 in a paper published by Archer J. P. Martin and Richard L. M. Synge. However, this concept became practical only after decades of technological development.
• It was only in 1966 that the first experimental report demonstrating HPLC was published by Csaba Horvath and Seymour Lipsky. Their work described the ion-exchange separation of organic compounds.
• Later in 1967, Waters Associates introduced the first commercially available HPLC system.

Principle of HPLC

HPLC separates the components of a mixture by passing a liquid mobile phase through a column packed with a stationary phase under high pressure. The stationary phase usually contains very small and porous particles, which need high pressure to maintain the solvent flow.

The sample is introduced into the moving mobile phase and transported through the column toward the detector. As the sample moves through the column, individual components interact differently with the stationary phase according to their properties and move through the column at different rates. This results in the separation of the components.

The separated components elute from the column and pass through a suitable detector. The detector response is converted into an electrical signal and recorded as a chromatogram, which is a plot of detector response versus time. Each peak represents a separate compound, with its retention time showing its identity and peak area showing its concentration.

Instrumentation of HPLC

Solvent Reservoir

It stores themobile phaseor solvent that transports the sample through the system. The reservoir is connected to the HPLC system by inlet tubing that is fitted with a filter to prevent particulates from entering the pump and column. Solvents that are commonly used in HPLC are acetonitrile, methanol, and water.

HPLC Pump

It is used to deliver the mobile phase through the system at a constant flow rate under high pressure. HPLC systems commonly use isocratic, binary, or quaternary pump configurations. The pump can generate the high pressure needed to force the mobile phase through the column packed with small particles.

Solvent Degasser

It removes dissolved gases from the mobile phase to maintain stable flow and detector performance. Dissolved gases can form air bubbles, which can cause pressure fluctuations, pump malfunction, and signal noise.

Sample Injector

It introduces a precise volume of sample into the mobile phase stream without disturbing the system flow. HPLC systems use either manual injectors or autosamplers. Autosamplers are preferred in high-throughput applications because they reduce manual handling, improve accuracy, and can handle multiple samples sequentially.

HPLC Column and Column Oven

The column is the main component for separation. It is packed with a stationary phase that contains adsorbent material of small particle size. HPLC columns are usually made from stainless steel that can withstand high pressure and contain silica-based or polymer-based support. Guard columns and guard filters are also often used to protect columns by trapping contaminants and insoluble particles. The column performance is strongly influenced by temperature. Proper temperature control improves chromatographic performance and can reduce analysis time. A column oven is used to control and maintain the column temperature during analysis.

Detector

It detects compounds as they elute from the column and converts their response into an electrical signal for data analysis. The type of detector used depends on the objective of the analysis and properties of the sample. Commonly used detectors in HPLC are UV-visible detectors, fluorescence detectors, refractive index (RI) detectors, evaporative light scattering detectors (ELSD), and mass spectrometers (MS).

Data System

The data system controls the HPLC instrument, records detector signals, and processes the data. The detector signal is processed by the data system into a chromatogram, which is used for qualitative and quantitative analysis of the sample.

Types of HPLC

Based on the principle of separation, the most commonly used types of HPLC are:

Normal-phase HPLC (NP-HPLC) uses a polar stationary phase with a non-polar mobile phase. In this mode, separation is based on polarity. Commonly used stationary phase is silica, while mobile phase includes organic solvents like hexane, chloroform, methylene chloride, diethyl ether, or mixtures of these solvents. In this method, polar compounds have stronger interactions with the stationary phase and are retained for longer than nonpolar compounds.

Reverse-phase HPLC (RP-HPLC) is the most widely used HPLC mode. It uses a non-polar stationary phase with a polar mobile phase. In this mode, separation is based on hydrophobic interactions, so non-polar compounds are retained longer. Commonly used stationary phases include bonded silica materials like octadecylsilane (C18), and the mobile phase includes water mixed with methanol or acetonitrile.

Ion-exchange chromatography (IEC) separates compounds based on their charge. This method is commonly used for inorganic ions, metals, and charged biomolecules. The stationary phase contains positively or negatively charged functional groups that interact with oppositely charged ions in the sample. Based on the nature of the functional group, IEC can be divided into cation-exchange and anion-exchange chromatography.

Size-exclusion chromatography (SEC) separates compounds based on their molecular size. It is commonly used for polymers and large biomolecules. When organic solvents are used as the mobile phase, the method is called gel permeation chromatography (GPC), and when aqueous mobile phases are used, it is called gel-filtration chromatography (GFC). Larger molecules cannot enter the pores and elute first, while smaller molecules penetrate the pores and elute later.

Elution Modes in HPLC

HPLC separations can be performed using two main elution modes:

Isocratic elution

In isocratic elution, the mobile phase composition is constant throughout the analysis. This mode is simple and cost-effective, which is ideal for routine analysis and for samples with similar chemical properties. However, isocratic elution is less effective for complex samples and can lead to longer run times or poor resolution for strongly retained compounds.

Gradient elution

In gradient elution, the mobile phase composition gradually changes with time. This mode is often used for complex samples and during method development for unknown samples. This mode produces sharper peaks, reduces overall analysis time, and improves the separation of complex mixtures. However, it requires more advanced instrumentation and careful method optimization.

Procedure or Steps of HPLC

1. Sample preparation

• Sample preparation makes the sample compatible with the HPLC system and minimizes matrix interferences.
• This can involve converting samples into suitable liquid form, simplifying complex mixtures, removing contaminants, and adjusting sample concentration.
• Commonly used techniques are filtration, dilution, centrifugation, extraction, and derivatization.
• The methods used depend on the sample type and analysis requirements.

2. Mobile phase preparation

• Mobile phase is prepared by using high-purity solvents and filtering them to remove particulates that can interfere with the system.
• Degassing is done to remove dissolved gases that can cause baseline noise and pressure fluctuations. It can be done by sonication, vacuum treatment, or by using an inline degasser.
• The mobile phase must also be compatible with the sample, the stationary phase, and the detector.
• The prepared mobile phase is then pumped through the column at a controlled flow rate by a high-pressure pump.

3. Column selection

• The column contains stationary-phase particles that separate sample components based on their properties.
• It is important to choose the correct column for effective separation. Column dimensions and particle size must be compatible with the sample.

4. Sample injection

• The prepared sample is introduced into the HPLC system using an injector or autosampler.
• Proper injection volume must be used for accurate analysis and to minimize overlapping peaks.

5. Separation

• Separation occurs inside the column as the sample moves through the column with the mobile phase.
• Sample components are separated based on their interactions with the stationary phase.
• Separation can be done by using characteristics of compounds like polarity, charge, and molecular size.
• Compounds that have stronger interactions with the stationary phase are retained for a longer time and elute later from the column, while those with weaker interactions move faster and elute earlier.
• This difference in movement and retention time separates the sample components into distinct bands, which are detected and analyzed.

6. Detection

• The separated compounds are measured by a detector as they elute from the column.
• The detector identifies the compounds and converts their presence into an electrical signal.
• UV detectors are most commonly used in HPLC. Other detectors, like mass spectrometers, are also used for improved identification.

7. Data Analysis

• The detector signals are processed by a chromatography data system (CDS), which converts them into a plot of signal intensity versus time.
• This graphical output is called a chromatogram, where each peak represents a separated compound.
• The retention time is used for compound identification, and the peak area is used to determine the sample concentration.
• Quantitative analysis can be done by comparing peak areas with standards of known concentration.

Factors Affecting HPLC

• The physical and chemical properties of the stationary phase, including particle size and surface area, can affect column performance. Smaller particles provide greater surface for interaction and improve resolution, but this also increases system back pressure.
• The properties of the mobile phase control elution and separation. Gradient elution is more commonly used for complex samples, while isocratic elution is suitable for simpler mixtures.
• The mobile phase flow rate can affect retention time and separation resolution. Higher flow rates reduce analysis time but can also reduce resolution, whereas lower flow rates increase resolution but can take longer run times. An optimal flow rate must be selected
• Column temperature affects chromatographic analysis by influencing solvent viscosity and interactions. Increasing temperature can improve peak shape and reduce retention time, but excessively high temperatures can degrade the sample or the stationary phases.
• The sample injection volume must also be suitable, as excessive injection volume can overload the column, while too small a volume can reduce sensitivity.

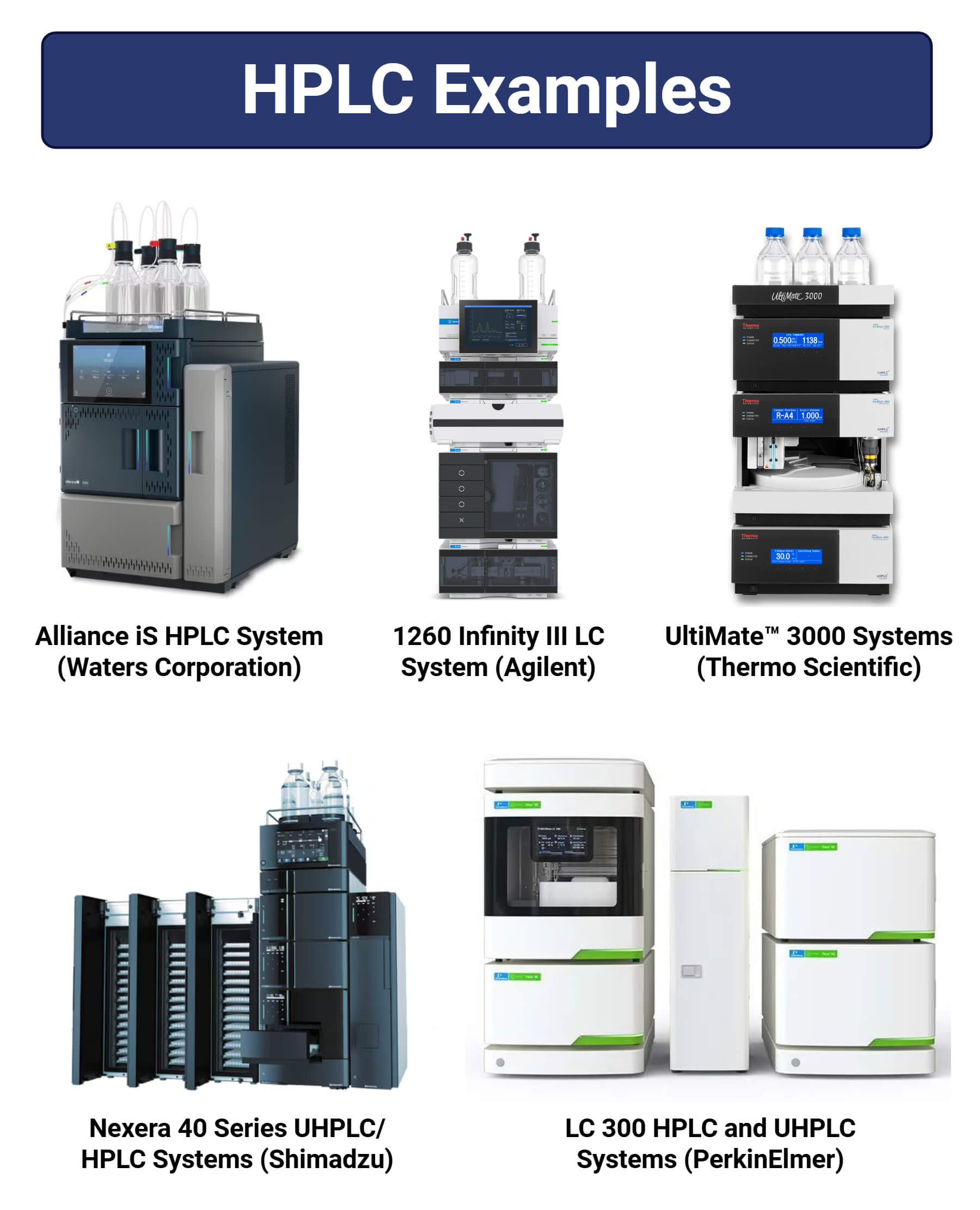

Common Products and Manufacturers of HPLC

Common Products	Manufacturers
Alliance HPLC, Arc HPLC, Breeze QS HPLC, ACQUITY UPLC, ACQUITY Premier System, HPLC columns, detectors, and Empower CDS	Waters Corporation
InfinityLab LC series, like 1260 Infinity III and 1290 Infinity III,HPLC consumables and accessories, including pumps, detectors, injectors, columns like ZORBAX, and solvents, OpenLAB CDS	Agilent Technologies
Vanquish Core HPLC, Vanquish Duo HPLC, Vanquish Horizon UHPLC System, Vanquish Flex UHPLC, Transcend LX Multichannel UHPLC, detectors, columns, Chromeleon CDS	Thermo Fisher Scientific
Nexera Series, i-Series Integrated LC, LC-2030C NT HPLC, Nexera Prep, LC columns, LabSolutions software	Shimadzu Corporation
LC 300 HPLC and UHPLC System, SimplicityChrom CDS, detectors	PerkinElmer
AZURA Analytical HPLC, AZURA HTQC UHPLC, detectors, HPLC columns, ClarityChrom CDS software, PurityChrom	KNAUER

Applications of HPLC

• HPLC is used in pharmaceutical analysis and quality control for drug development. It is used to check the properties of drugs, such as their stability, which ensures the safety and efficacy of pharmaceutical products.
• It is used in environmental monitoring to identify and monitor pollutants. It is commonly used to detect pesticides and industrial pollutants.
• It is used in the food industry for quality control. It can be used to detect food additives and potential contaminants.
• It is used in clinical laboratories to analyze biological samples, including blood, plasma, serum, and urine. This is useful for the quantification of drugs and metabolites, therapeutic drug monitoring, and disease diagnosis.
• It is used in forensics and toxicology applications for screening and confirmation of drugs of abuse, toxicological analysis in biological fluids, and doping control in sports and veterinary applications.
• It is used in different industries for quality control applications and to monitor product stability.

Advantages of HPLC

• HPLC can separate and analyze multiple components in complex mixtures with high resolution in a single run.
• It provides high sensitivity and allows detection of trace-level compounds.
• HPLC is also highly versatile and suitable for the analysis of a wide range of substances, including small molecules, biomolecules, and complex mixtures.
• It is also compatible with non-volatile and thermally unstable compounds, which cannot be analyzed by gas chromatography.
• HPLC systems support automation and allow efficient analysis in routine and large-scale applications.
• HPLC is fast compared to other chromatographic methods. It uses a pump to force a liquid solvent through a solid absorbent material.

Limitations of HPLC

• HPLC requires expensive reagents and equipment. The initial cost of the system and maintenance costs can be high.
• It has low sensitivity for certain compounds, like volatile compounds that are better analyzed by gas chromatography.
• It can be complex to troubleshoot problems or develop new methods. Method development can be time-consuming.
• It is also difficult to set up and operate HPLC systems. This includes adjusting different parameters such as flow rate, column type, temperature, and mobile phase composition.
• HPLC operation requires skilled personnel.

HPLC Troubleshooting and Safety Considerations

HPLC analysis can face different issues. It is important to understand the cause of these issues to solve them. Some of these issues with their potential causes and solutions are:

• Peak fronting can occur when the column is overloaded with sample. This is resolved by reducing the sample injection volume or replacing the column if necessary.
• Peak tailing occurs due to unwanted interactions between analytes and the stationary phase. This can be minimized by adjusting the pH of the mobile phase or using suitable columns.
• Peak splitting can occur due to blocked column frits, incompatible injection solvents, or excessive injection volume. This can be resolved by filtering samples, reducing injection volume, and ensuring the injection solvent matches the mobile phase.
• Peak broadening occurs due to injection volume overload, incorrect mobile phase composition, and column contamination. This can be minimized by reducing injection volume, adjusting mobile phase composition, and regular column maintenance.
• Ghost peaks occur due to sample carryover from previous injection, contaminated mobile phase, or system contamination. This can be reduced by using high-purity solvents, flushing the system, and improving sample cleanup.
• High backpressure occurs due to column contamination, blocked tubing, or high solvent viscosity. This can be reduced by replacing clogged tubing, cleaning the column, and adjusting solvent composition.
• Baseline instability occurs due to poor solvent mixing, temperature changes, air bubbles, electrical interference, insufficient degassing, or contamination. Solutions include using high-purity solvents, degassing solvents, maintaining stable temperature conditions, and flushing the system.

HPLC involves using high-pressure systems, electrical instruments, and hazardous chemicals, so it is important to strictly follow safety practices.

• High-pressure fittings and tubing must be inspected regularly to prevent leaks and pressure hazards.
• Many solvents used in HPLC are flammable and toxic, so they must be handled in well-ventilated areas.
• Chemicals should be clearly labeled with their names, hazards, and precautions.
• Personal protective equipment, including lab coats, gloves, and safety glasses, must be worn when handling solvents or operating HPLC systems.
• Waste solvents must be collected in labeled waste containers and disposed of according to regulatory guidelines.
• All lab personnel should be trained in current safety procedures.
• Laboratories should be prepared for emergencies with accessible fire extinguishers, eyewash stations, first-aid kits, and fire blankets.

HPLC Recent Advances and Innovations

• Modern developments include ultra-high performance liquid chromatography (UHPLC), which uses even smaller particle sizes and higher pressure. UHPLC uses columns packed with sub-2 µm particles, which allow faster separations with higher resolution compared to conventional HPLC.
• Another advancement is the coupling of HPLC with advanced detectors, including mass spectrometry (LC-MS). This allows the detailed analysis of complex samples in different applications.
• Improvements in column technology include smaller and more uniform particles, core-shell particles, bonded stationary phases such as C18, and monolithic columns.
• Recent advances focus on more sustainable practices, including the use of environmentally friendly solvents, reduced solvent consumption, improved column materials, and miniaturized systems. This makes HPLC faster and more sustainable.
• Modern HPLC systems use automation and AI-based tools, which simplify complex steps and reduce human error.

Conclusion

High-performance liquid chromatography (HPLC) is a separation method that is widely used in different industries for the separation and identification of compounds in liquid mixtures. HPLC systems use high-pressure pumps to maintain solvent flow through small particles, which improves separation efficiency and speed.

Since its development in the late 1960s, HPLC has advanced into one of the most widely used separation techniques for small molecules and polymers. It is widely used in different industries as it can handle complex mixtures and detect substances present at very low concentrations. It can also analyze non-volatile compounds that cannot be easily analyzed using gas chromatography.
